GO 62HD Series

Gorlitz ITC Instrument Technology Drain Cleaning Machine Equipment

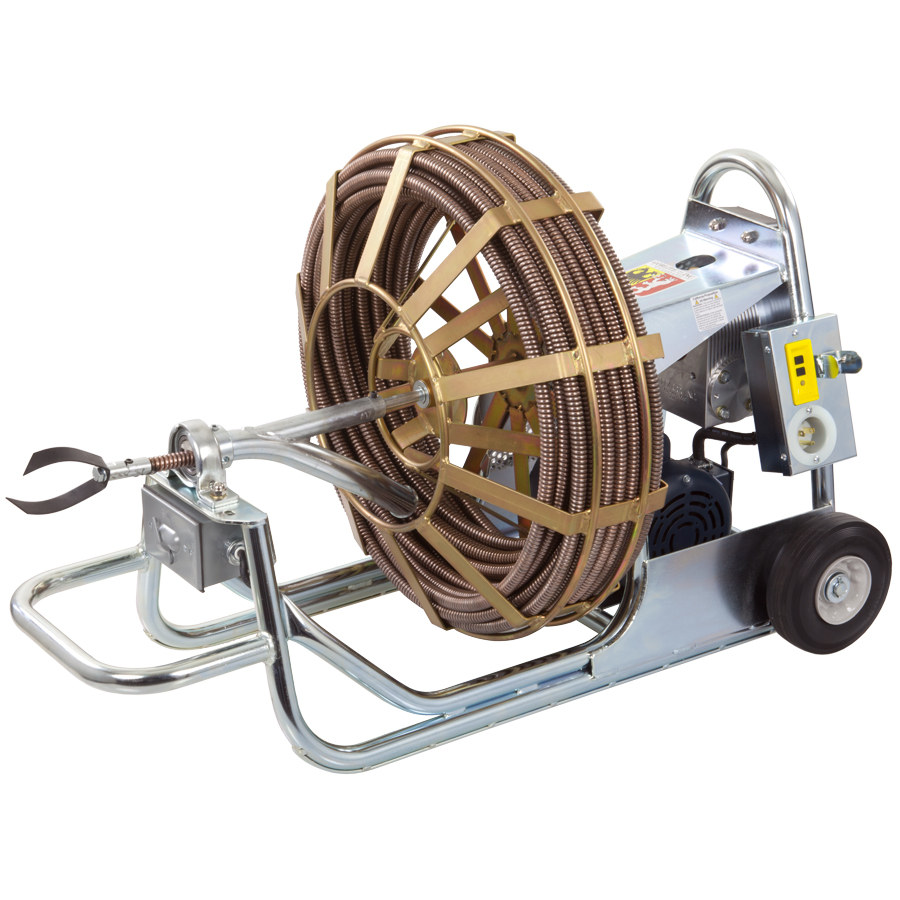

The Gorlitz™ Model 62HD is a mirror image of our larger Model GO 68HD. Extremely versatile and being one of our most in-demand combination machines, the Model GO 62HD is highly preferred due to its smaller size and lighter weight. Easy to transport to the job site, the GO 62HD includes an assortment of three interchangeable reels including cables that can handle most any cleaning job. The ball bearing 1/3 HP reversible motor develops approximately 100 lbs. of torque and cleans sewer and drain lines from 1 1/2″ to 4″ in diameter up to 200 feet long.

Gorlitz GO 62HD ITC Instrument Technology Drain Cleaning Machine Equipment
Accessories
  • Qty 1 – T 29 Tool Box
  • Qty 1 – T 07B Electric Foot Switch
  • Qty 2 – E 01 3/8″ & 13/32 Cable End
  • Qty 2 – E 03 1/2″ Cable End
  • Qty 2 – E 05 5/8″ Cable Connector
  • Qty 2 – E 08 Regular Chuck
  • Qty 1 – E 12 5/32″ Allen Wrench
  • Qty 2 – S 01 3/8″ 13/32″ Splice
  • Qty 2 – S 03 1/2″ Splice
  • Qty 2 – S 04 5/8″ Cable Splice
  • Qty 1 – S 11 Combination Retriever
  • Qty 1 – K 01 1/2″ X 1-1/2″ – Half Circle
  • Qty 1 – K 02 1/2″ X 2″ – Half Circle
  • Qty 1 – K 03 1/2″ X 1-1/2″ – Full Circle
  • Qty 1 – K 04 1/2″ X 2″ – Full Circle
  • Qty 1 – K 05 1/2″ X 3″ – Pear Shape
  • Qty 1 – K 06 3/4″ X 2″ – Half Circle Coined
  • Qty 1 – K 07 3/4″ X 2″ – Full Circle Coined
  • Qty 1 – K 08 3/4″ X 3″ – Pear Shape Coined
  • Qty 1 – K 10 3/4″ X 2 1/2″ – Full Circle Teeth
  • Qty 1 – K 11 3/4″ X 3″ – Full Circle Teeth
  • Qty 1 – K 13 3/4″ X 2″ – Pear Shape Teeth
  • Qty 1 – K 14 3/4″ X 3″ – Pear Shape Teeth
Specifications
  • 1/3 HP Ball Bearing Motor
  • 10:1 Ratio Heavy Duty Gearbox
  • Ground Fault Interrupter
  • 5/8″ X 100′ Cable
  • 1/2″ X 80′ Cable
  • 3/8″ X 90′ Cable
  • Cable Rotation: 165 RPM
  • Pipe Size: 1 1/2″ to 4″ Diameter
  • Maximum Pipe Length: 200 Feet
  • Dimensions: 35″ L x 22″ W x 24″ H
  • Machine Net Weight 5/8″ Cable: 168 LBS
